ES82FD
Aluminium Folding Door
A thermal-break folding system with multiple threshold options, heavy-duty pulleys and flexible panel configurations.
Request project reviewSystem overview
Designed as a complete opening.

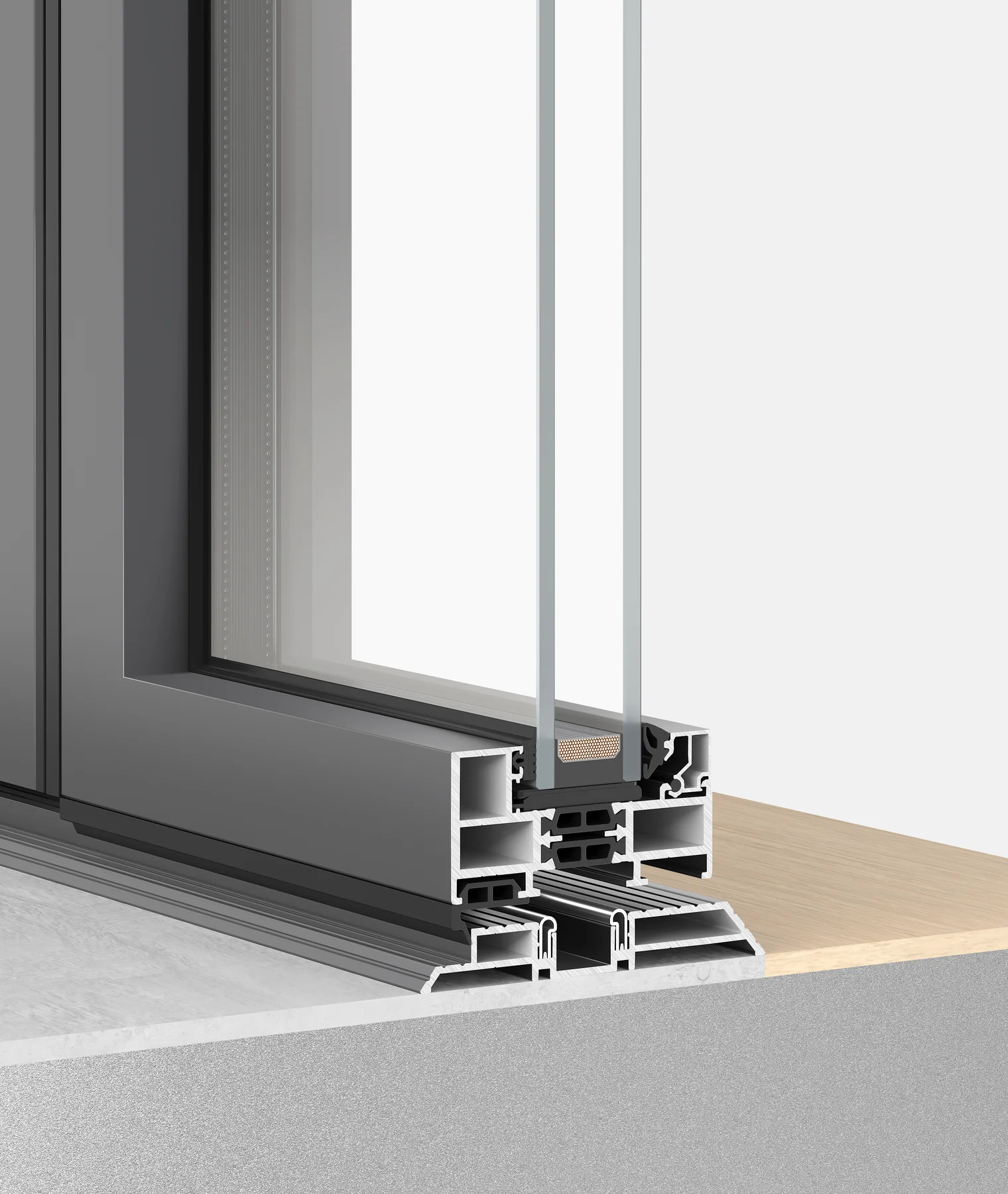

ES82FD opens wide to connect interior and exterior spaces. Coordinated top and bottom rollers carry the panels, while standard and low-threshold tracks provide different balances of accessibility and weather protection.
- 14 mm low-threshold option
- 48 mm standard weather track
- Steel heavy-duty pulley components
- Custom folding configurations

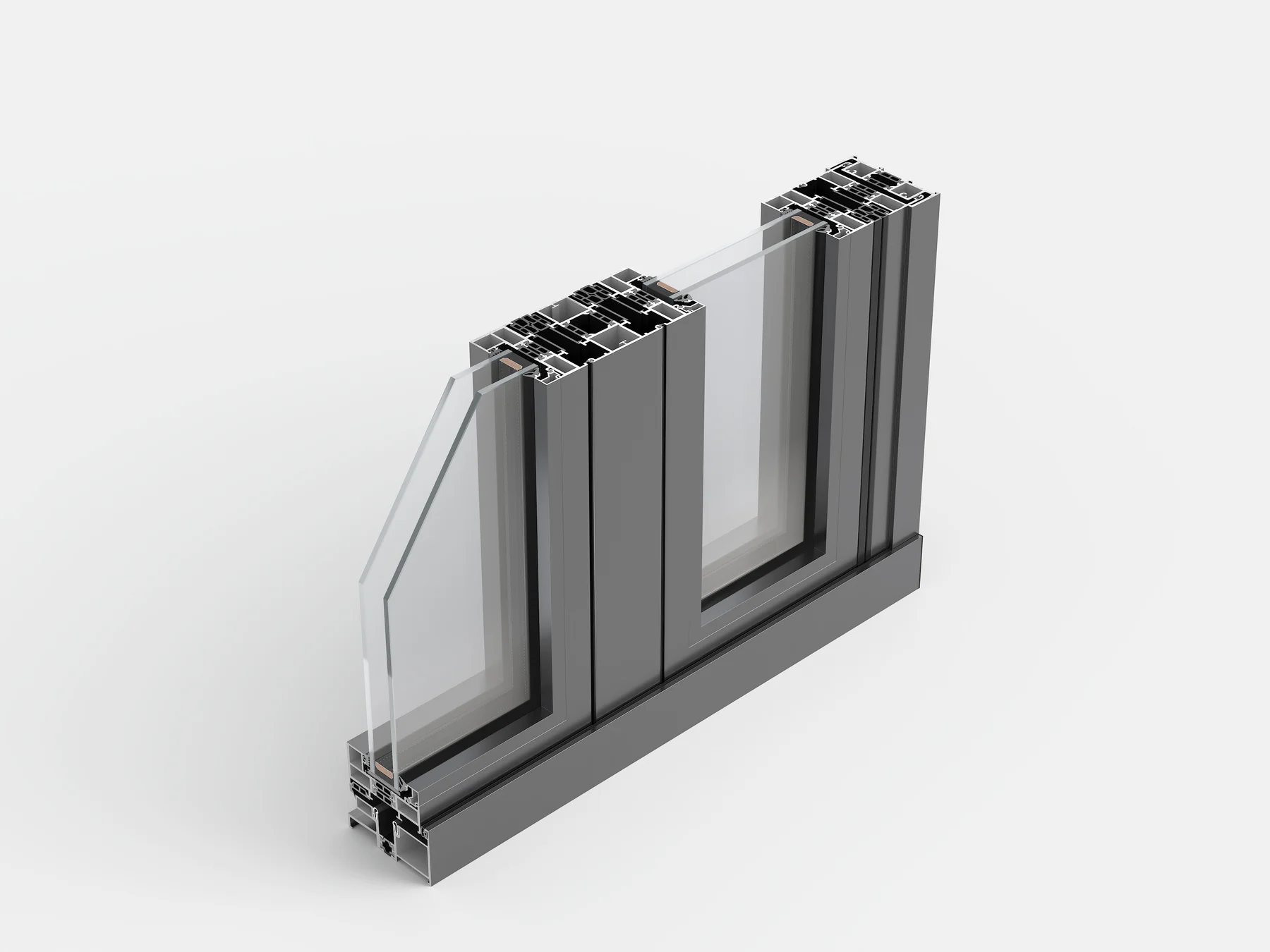

Available specifications
- Frame width
- 82 mm
- Visible sash
- 36 mm
- Profile wall
- 2.2 mm
- Glass
- 5 + 20A + 5
- Thermal break
- PA66GF25
Final dimensions, performance and component selection are confirmed against the project drawings and local requirements.
