CS95
Tilt & Turn Window
A clean inward-opening system built around a 44 mm thermal break, compact facade lines and easy screen maintenance.
Request project reviewSystem overview
Designed as a complete opening.
CS95 brings the opening and fixed sections onto one continuous visual line. Its modular frame logic improves material interchangeability while the concealed construction reduces leakage risk at the installation interface.
- Ribless mullion with 6 mm gap
- 44 mm vertical isotherm thermal break
- Detachable 90-degree screen
- Shared material logic across the CS platform

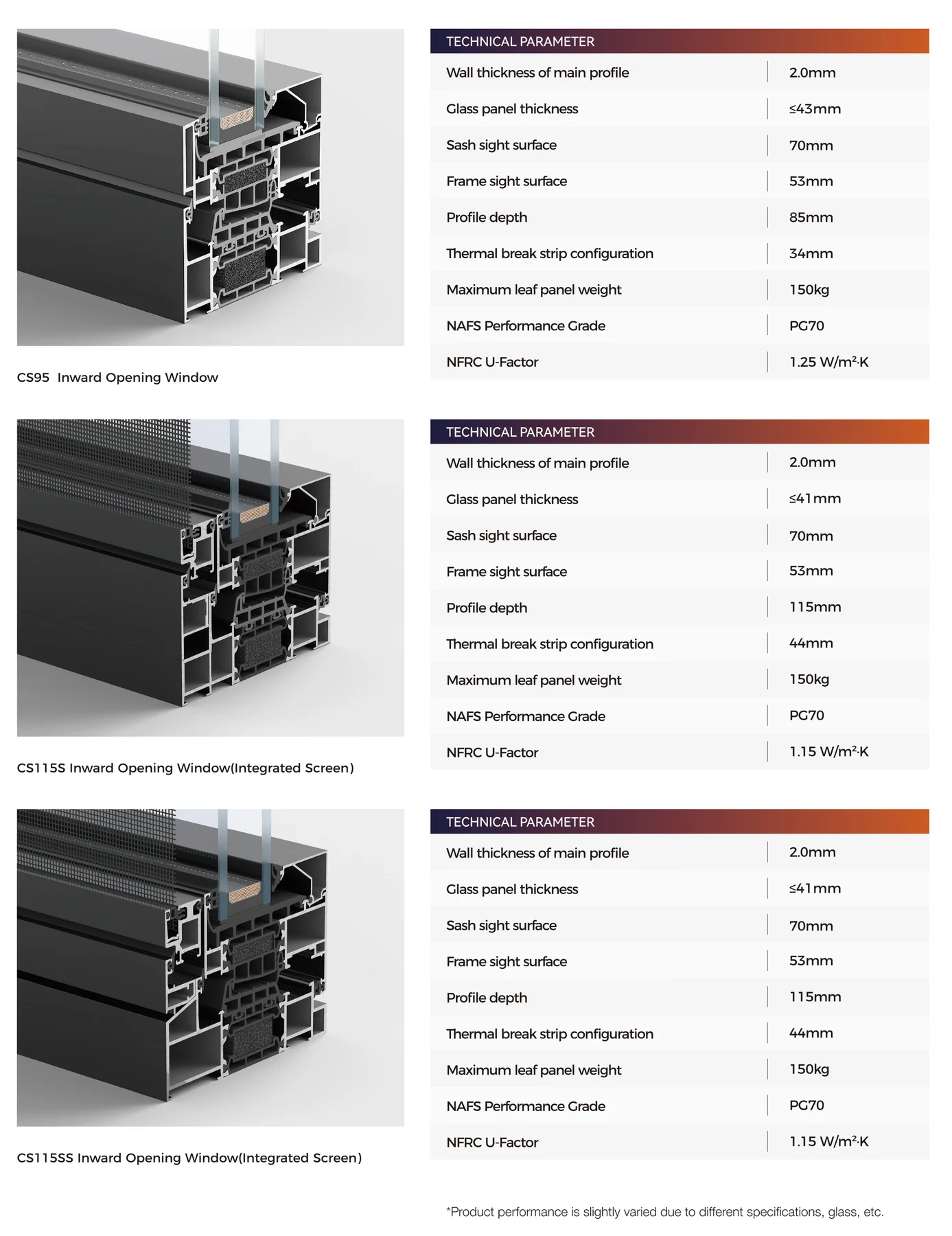

Available specifications
- Opening
- Tilt & turn / inward opening
- Thermal break
- 44 mm
- Sealing
- Four-stage joint sealing
- Screen
- Detachable, 90-degree opening
Final dimensions, performance and component selection are confirmed against the project drawings and local requirements.
